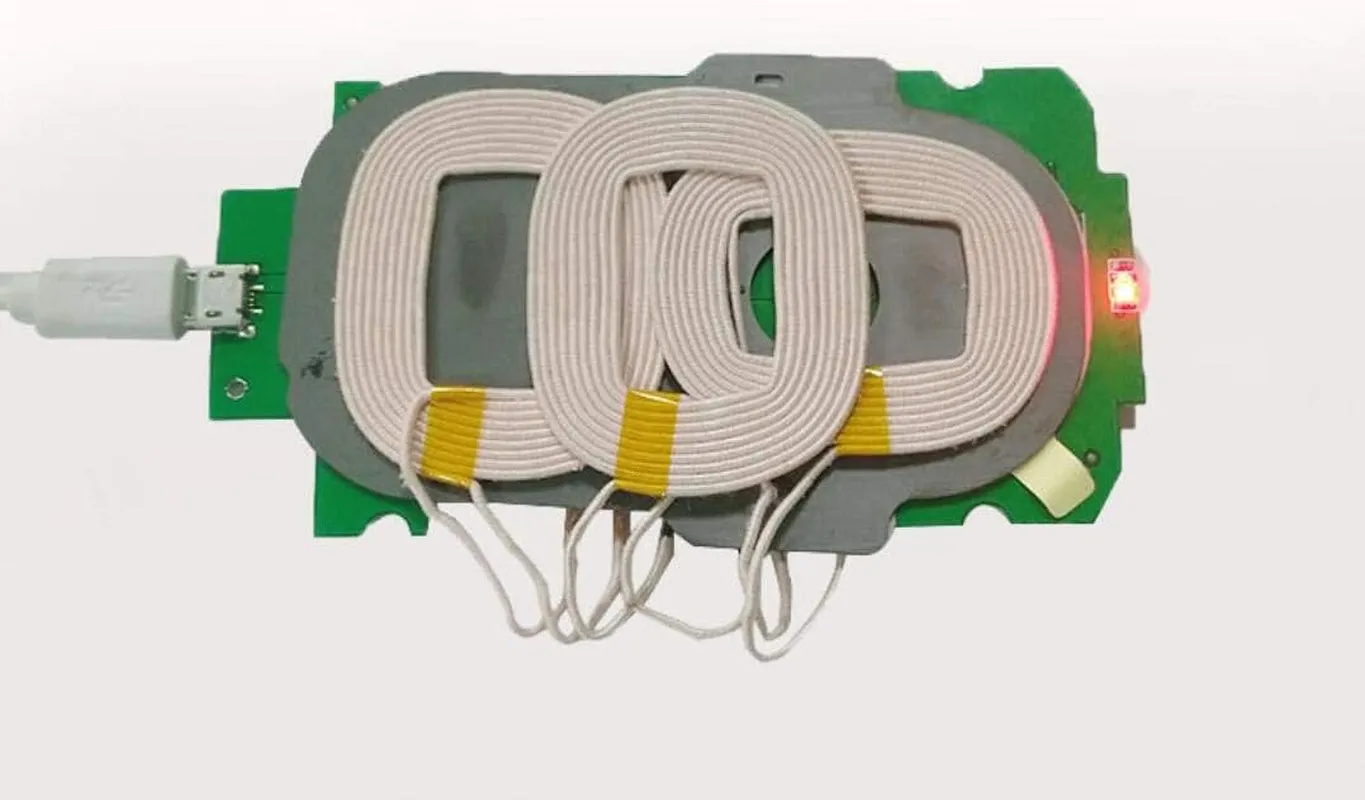

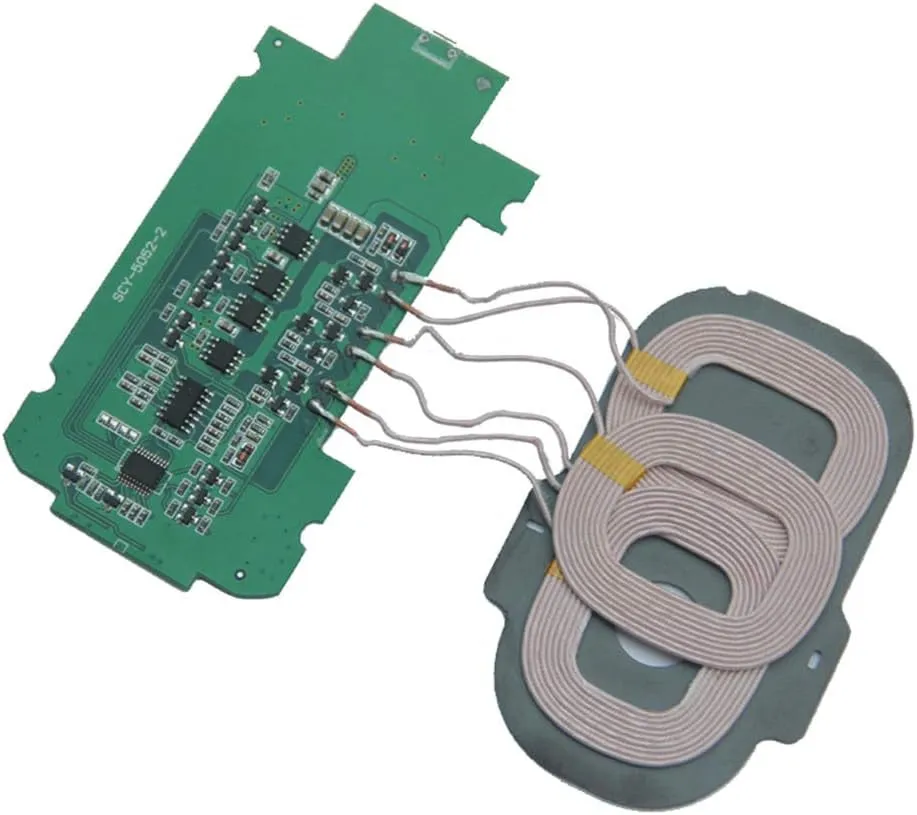

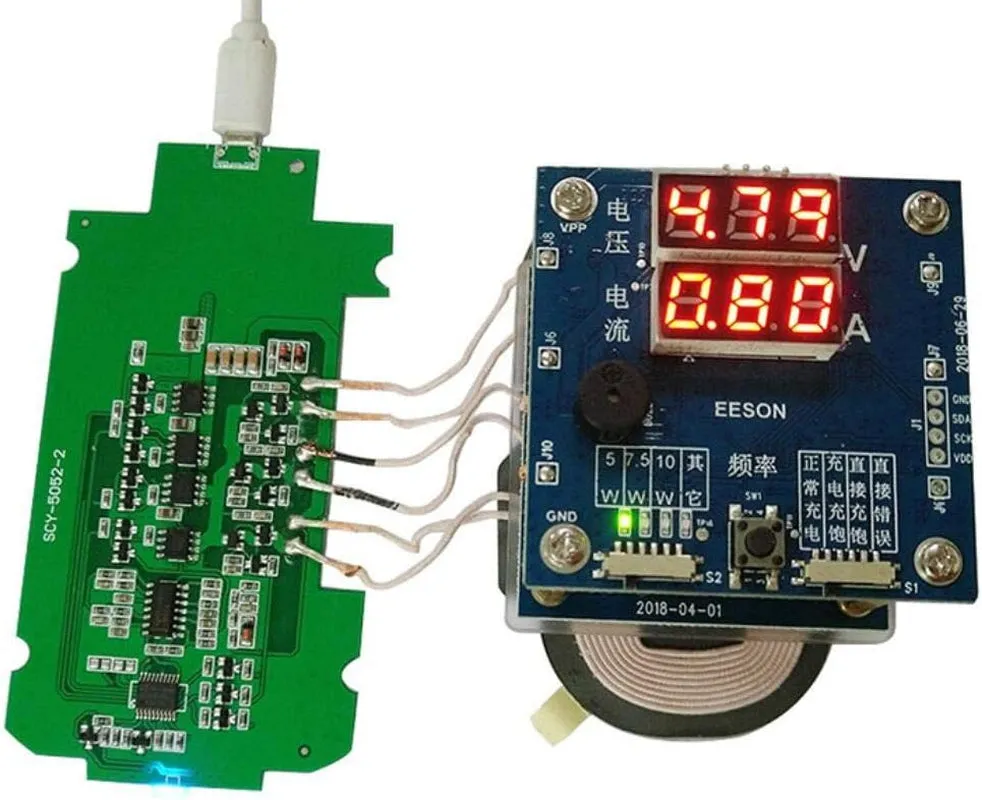

The Taidacent Three Coils Wireless Charger PCBA is an innovative and high-performance wireless charging solution designed for DIY enthusiasts and tech-savvy users. This QI Standard charging transmitter module enables efficient and reliable wireless charging, making it perfect for a range of devices that support the QI wireless charging standard. With its advanced features, robust design, and safety mechanisms, this wireless charger is an ideal choice for both personal and professional use.
- High Power Output: The Taidacent wireless charger operates with an input power of DC9V1.5 ~ 2A, providing a strong and stable charging output that enhances charging speed and efficiency.
- Advanced Safety Features: Equipped with overcurrent protection, this module automatically stops charging if the output current exceeds 2A, protecting both the charger and your device from damage.
- Temperature Control: The charger includes over-temperature protection, which halts charging when temperatures exceed 60°C. This smart feature allows for a safe cooling period before re-engaging the charging process.

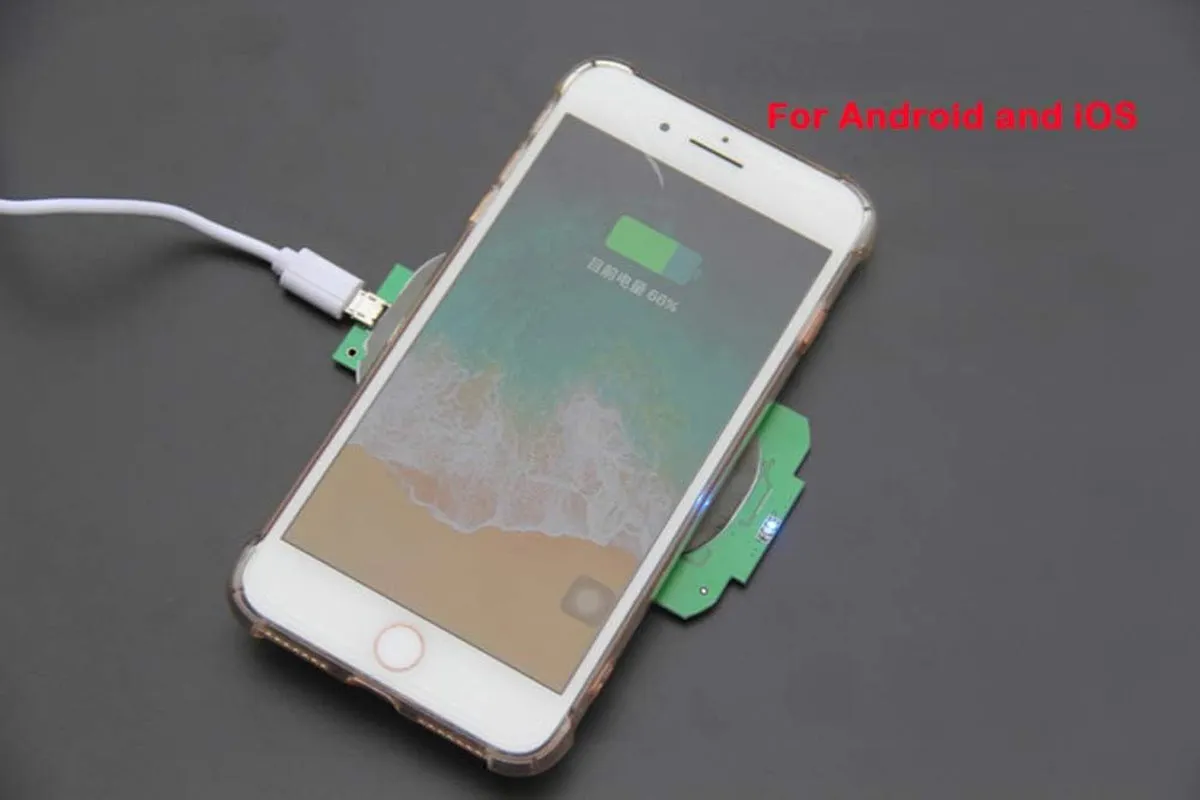

- Wide Compatibility: This module supports a variety of devices compatible with QI wireless charging standards, ensuring you can use it with a broad range of smartphones and gadgets.
- Efficient Energy Consumption: With an average standby power consumption of less than 50mW and a conversion rate greater than 73%, this wireless charger is designed to be energy-efficient without sacrificing performance.
Technical Details of the Taidacent Wireless Charger
- Input Power: DC9V1.5 ~ 2A
- Working Frequency: 110-205KHz
- Receiving Distance: Up to 8mm
- Standby Power Consumption: Less than 50mW
- Conversion Rate: Greater than 73%
How to Install the Taidacent Wireless Charger
Installing the Taidacent Three Coils Wireless Charger PCBA is straightforward and hassle-free. Follow these simple steps for a successful installation:
- Ensure you have all necessary tools and components, including the wireless charger module, power supply, and any necessary connectors.

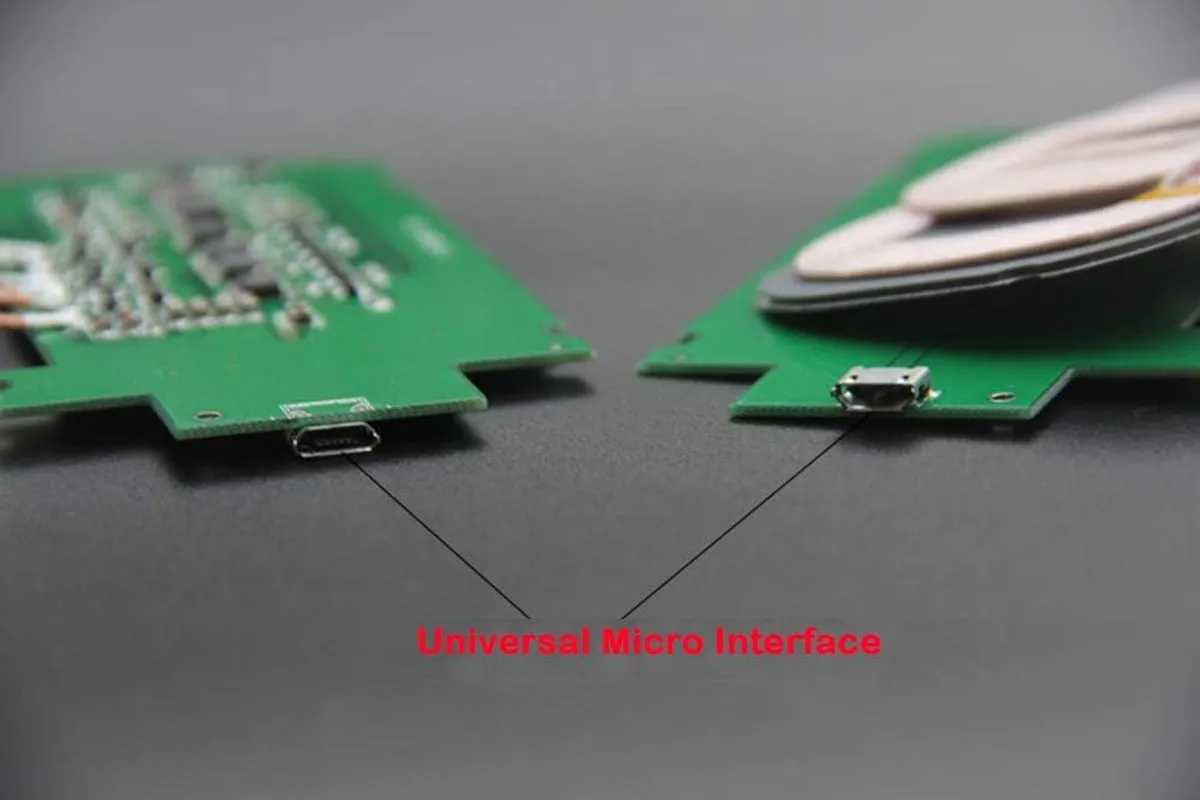

- Connect the input power supply to the designated terminals on the wireless charger module, ensuring correct polarity.
- Place the wireless charger in a suitable location where it can effectively transmit power to your device.
- Ensure that the device you wish to charge is compatible with QI standards and aligns properly with the charging area of the module.
- Turn on the power supply, and your device should begin to charge wirelessly.
Frequently Asked Questions
1. What devices are compatible with the Taidacent Three Coils Wireless Charger?
The charger supports all devices that are compatible with the QI wireless charging standard, including most modern smartphones and accessories.
2. How far can the device be from the charger for effective charging?
The effective receiving distance for wireless charging is up to 8mm. Ensure that there are no obstructions between the charger and the device.
3. What should I do if the charger stops working?
If the charger stops working, check to see if the input power supply is functioning correctly. Additionally, ensure that the device is aligned properly and that the temperature has not exceeded the safety threshold of 60°C.
4. Can I use this charger with older devices?
Only devices that support QI wireless charging will be compatible. Older devices that do not have this capability will not work with the Taidacent charger.
5. Is the Taidacent Wireless Charger safe to use?
Yes, it features multiple safety mechanisms including overcurrent and over-temperature protection, ensuring safe operation during charging.
